The goal of extr is to estimate finite-horizon extinction risk from population time series under a density-independent (drifted Wiener) model, with support for both naive MLE and observation-error-and-autocovariance-robust (OEAR) variance estimation.
# CRAN release
install.packages("extr")
# GitHub version (may be newer than CRAN)
# install.packages("remotes") # if needed
remotes::install_github("hakoyamah/extr")ext_di()ext_di() estimates population growth rate, variance, and
extinction probability from a time series of population sizes. It
supports two variance estimators: the default naive maximum-likelihood
estimator (method = "naive") and an
observation-error-and-autocovariance-robust estimator
(method = "oear"). Confidence intervals for extinction
probability are based on the \(w\)-\(z\)
method.
The following example uses the Yellowstone grizzly bear time series from Dennis et al. (1991), digitized from Fig. 5. The published series is a running 3-year sum (3-year moving total).
library(extr)dat <- data.frame(
Time = 1959:1987,
Population = c(
44, 47, 46, 44, 46, 45, 46, 40, 39, 39, 42, 44, 41, 40,
33, 36, 34, 39, 35, 34, 38, 36, 37, 41, 39, 51, 47, 57, 47
)
)Probability of decline to 1 individual within 100 years:
ext_di(dat, th = 100)
#> --- Estimates ---
#> Estimate
#> Probability of decline to 1 within 100 years (MLE): 9.4128e-05
#> Growth rate (MLE): 0.0023556
#> Environmental variance (MLE): 0.01087
#> Unbiased variance: 0.011273
#> AIC for the distribution of N: 165.06
#> CI
#> Probability of decline to 1 within 100 years (MLE): (1.4586e-13, 0.5653)
#> Growth rate (MLE): (-0.038814, 0.043525)
#> Environmental variance (MLE): (0.0070464, 0.020885)
#> Unbiased variance: -
#> AIC for the distribution of N: -
#>
#> --- Data Summary ---
#> Value
#> Current population size, nq: 47
#> xd = ln(nq / ne): 3.8501
#> Sample size, q + 1: 29
#>
#> --- Input Parameters ---
#> Parameter
#> Time unit: years
#> Extinction threshold of population size, ne: 1
#> Time window for extinction risk evaluation (years), th: 100.0
#> Significance level, alpha: 0.05Probability of decline to 10 individuals within 100 years:
ext_di(dat, th = 100, ne = 10)
#> --- Estimates ---
#> Estimate
#> Probability of decline to 10 within 100 years (MLE): 0.096852
#> Growth rate (MLE): 0.0023556
#> Environmental variance (MLE): 0.01087
#> Unbiased variance: 0.011273
#> AIC for the distribution of N: 165.06
#> CI
#> Probability of decline to 10 within 100 years (MLE): (1.0699e-05, 0.9898)
#> Growth rate (MLE): (-0.038814, 0.043525)
#> Environmental variance (MLE): (0.0070464, 0.020885)
#> Unbiased variance: -
#> AIC for the distribution of N: -
#>
#> --- Data Summary ---
#> Value
#> Current population size, nq: 47
#> xd = ln(nq / ne): 1.5476
#> Sample size, q + 1: 29
#>
#> --- Input Parameters ---
#> Parameter
#> Time unit: years
#> Extinction threshold of population size, ne: 10
#> Time window for extinction risk evaluation (years), th: 100.0

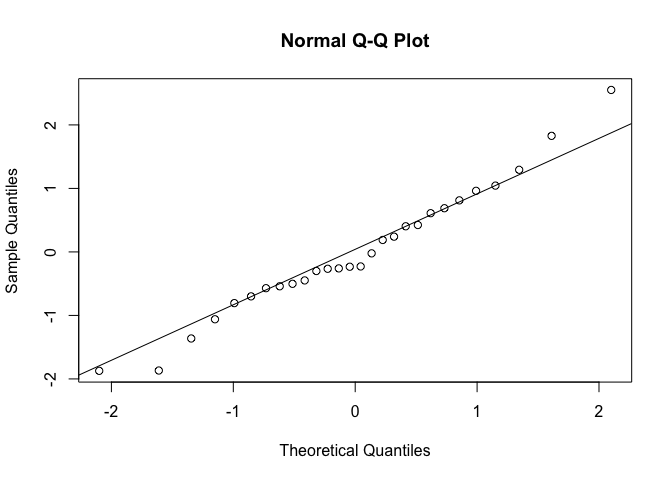

#> Significance level, alpha: 0.05With QQ plot:
ext_di(dat, th = 100, ne = 10, qq_plot = TRUE)
#> --- Estimates ---
#> Estimate
#> Probability of decline to 10 within 100 years (MLE): 0.096852
#> Growth rate (MLE): 0.0023556
#> Environmental variance (MLE): 0.01087
#> Unbiased variance: 0.011273
#> AIC for the distribution of N: 165.06
#> CI
#> Probability of decline to 10 within 100 years (MLE): (1.0699e-05, 0.9898)
#> Growth rate (MLE): (-0.038814, 0.043525)
#> Environmental variance (MLE): (0.0070464, 0.020885)
#> Unbiased variance: -
#> AIC for the distribution of N: -
#>
#> --- Data Summary ---
#> Value
#> Current population size, nq: 47
#> xd = ln(nq / ne): 1.5476
#> Sample size, q + 1: 29
#>
#> --- Input Parameters ---
#> Parameter
#> Time unit: years
#> Extinction threshold of population size, ne: 10
#> Time window for extinction risk evaluation (years), th: 100.0
#> Significance level, alpha: 0.05Using the OEAR variance estimator:
ext_di(dat, th = 100, method = "oear")
#> --- Estimates ---
#> Estimate
#> Probability of decline to 1 within 100 years (OEAR plug-in): 5.1099e-10
#> Growth rate (MLE): 0.0023556
#> Process variance (OEAR): 0.0043077
#> AR(1) pre-whitening rho: -0.52522
#> Bartlett lag truncation (j): 4
#> CI
#> Probability of decline to 1 within 100 years (OEAR plug-in): (1.6408e-23, 0.027088)
#> Growth rate (MLE): (-0.038814, 0.043525)
#> Process variance (OEAR): (0.0027924, 0.0082765)
#> AR(1) pre-whitening rho: -
#> Bartlett lag truncation (j): -
#>
#> --- Data Summary ---
#> Value
#> Current population size, nq: 47
#> xd = ln(nq / ne): 3.8501
#> Sample size, q + 1: 29
#>
#> --- Input Parameters ---
#> Parameter
#> Time unit: years
#> Extinction threshold of population size, ne: 1
#> Time window for extinction risk evaluation (years), th: 100.0
#> Significance level, alpha: 0.05The default ML method can use irregularly spaced observations directly. Under the drifted Wiener process model, the likelihood is evaluated for the observed time intervals, so no interpolation is needed.
dat_irregular <- subset(
dat,
Time %in% c(1959, 1960, 1962, 1965, 1969, 1974, 1980, 1987)
)
ext_di(dat_irregular, th = 100, ne = 10)A mostly complete annual series with a few missing observations can
also be supplied using NA values.
dat_with_na <- data.frame(
Time = 1959:1975,
Population = c(
44, 47, NA, 44, 46, 45, 46, NA, 39, 39,
42, 44, NA, 40, 33, 36, 34
)
)
ext_di(dat_with_na, th = 100, ne = 10)For the OEAR method, mild missingness can be treated as a pragmatic
effective-diffusion approximation. Avoid using
method = "oear" when missing observations are numerous or
observation intervals are highly heterogeneous.
ext_di(dat_with_na, th = 100, ne = 10, method = "oear")
